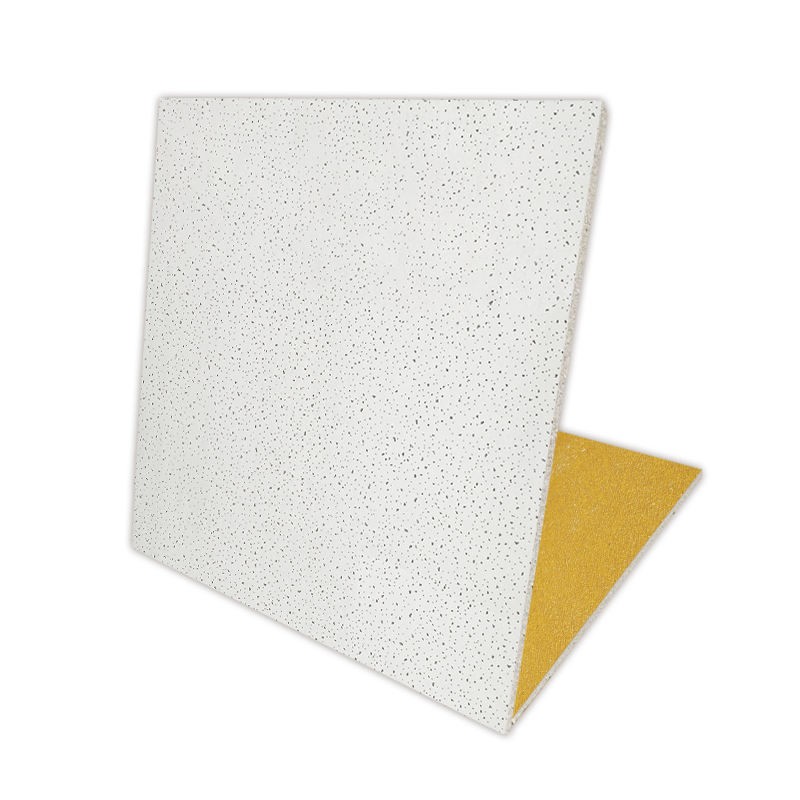

Mineral Fiber Ceiling Tile

Dimension: 2x2ft, 2x4ft
Panel thickness: 10mm, 12mm ,14mm ,15mm, 16mm, 18mm, 20mm
Edge: Square Lay-in edge, Tegular edge, Concealed edge
Density: 260~300 kg/cbm
Mass Humidity Rate: 0.8%
Humidity Resistance (RH): RH70 ~ RH99
Fire Resistance: ASTM E84 Class A
NRC: 0.55 ~ 0.85
CAC: 34~37

PDF

Mineral Fiber Ceiling Tiles

PuloMax mineral fiber ceiling tiles are eco-friendly, asbestos-free building materials with excellent acoustic performance, fire resistance and moisture resistance.

Crafted from premium slag-based long fibers, our tiles feature high light reflectance and mold resistance, ideal for education, healthcare, office, commercial and public spaces.

Product Features

1. Superior Acoustic Performance

NRC 0.55–0.85 for effective noise reduction and improved speech clarity.

2. Class A Fire Resistance

Non-combustible (ASTM E84 Class A / EN 13501-1 A2-s1,d0) with low smoke emission.

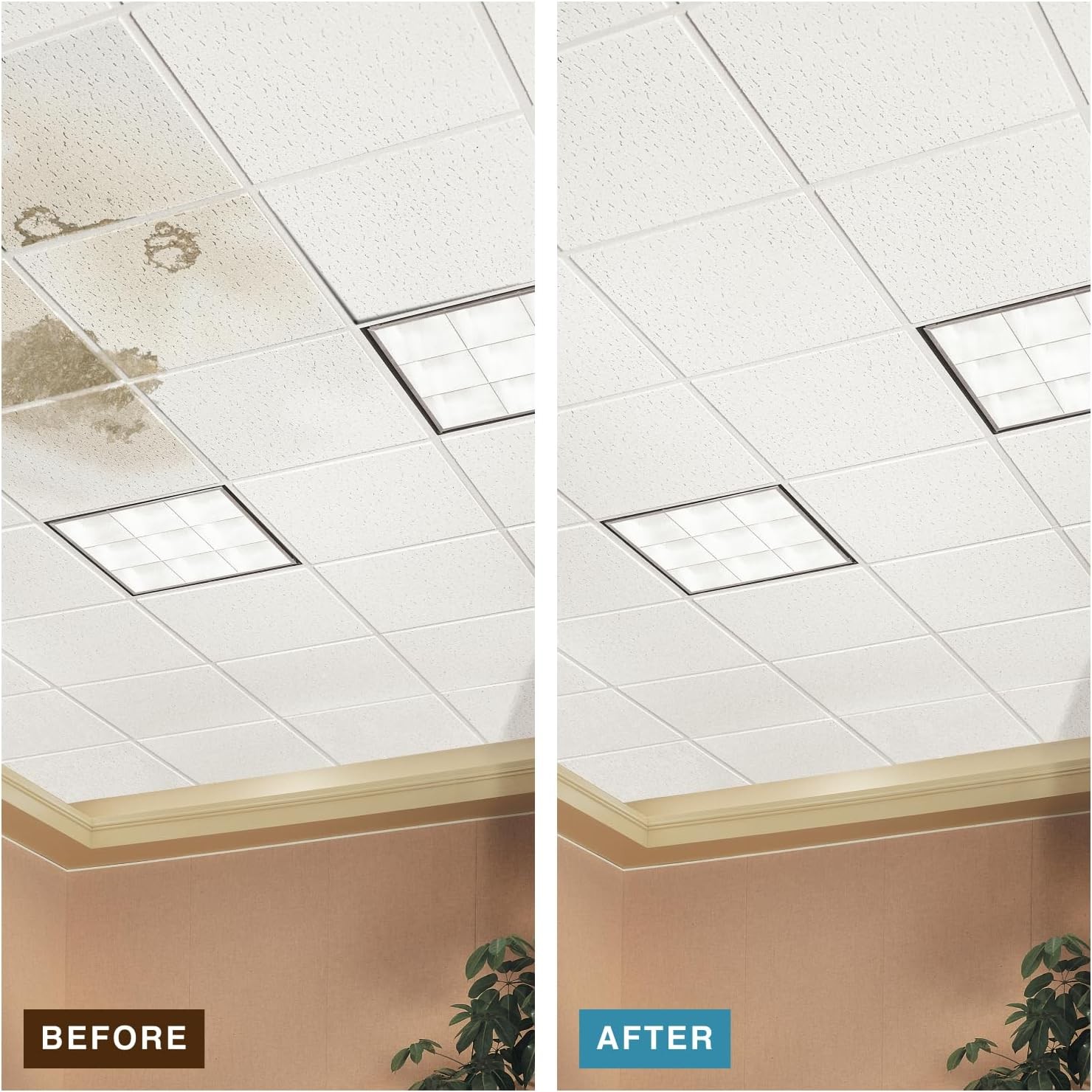

3. Excellent Thermal & Humidity Resistance

High insulation value; sag-resistant up to 99% RH.

4. Lightweight & Easy Installation

Quick lay-in system with easy plenum access and minimal structural load.

5. Versatile Aesthetics

Bright white finish with multiple texture options (fissured, sandblast, pin-hole).

minera fiber ceiling features.jpeg

Technical Specifications

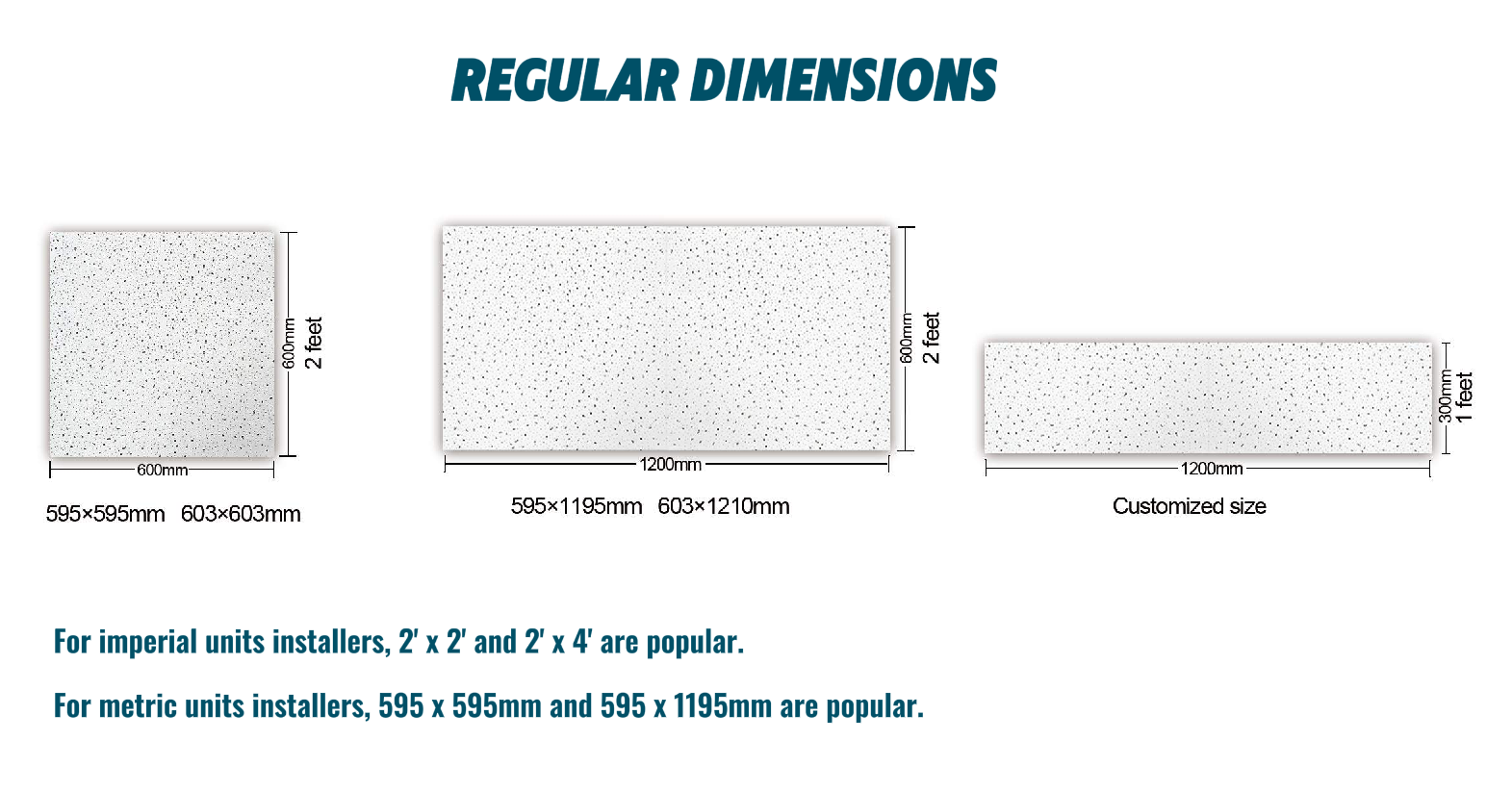

Dimension	2'x2', 595x595mm, 603x603mm, 600x600mm 2'x4', 595x1195mm, 603x1210mm, 600x1200mm
Panel Thickness	10mm, 12mm ,14mm ,15mm, 16mm, 18mm, 20mm
Edge	Square Lay-in edge, Tegular edge, Concealed edge
Density	260~300 kg/cbm
Mass Humidity Rate	0.8%
Humidity Resistance (RH)	RH70 ~ RH99
Fire Resistant	ASTM E84 Class A
NRC	0.55 ~ 0.85
CAC	34~37

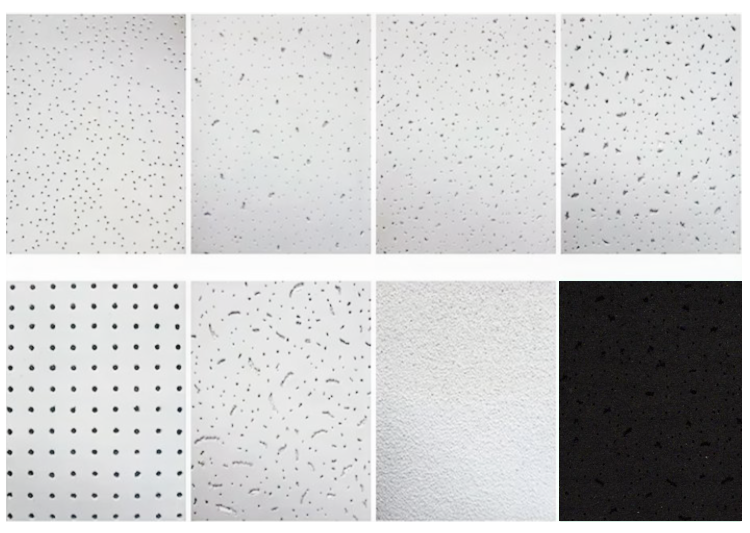

Typical Patterns

Diverse finishes to match any design vision:

Fine/Grid Perforated for premium acoustics;
Micro/Smooth Fissured for bright, clean aesthetics;
Slit for modern design;
Laminated for enhanced cleanability and moisture resistance;
Sandblasted for high reflectance;
and Solid Black for bold contrast.

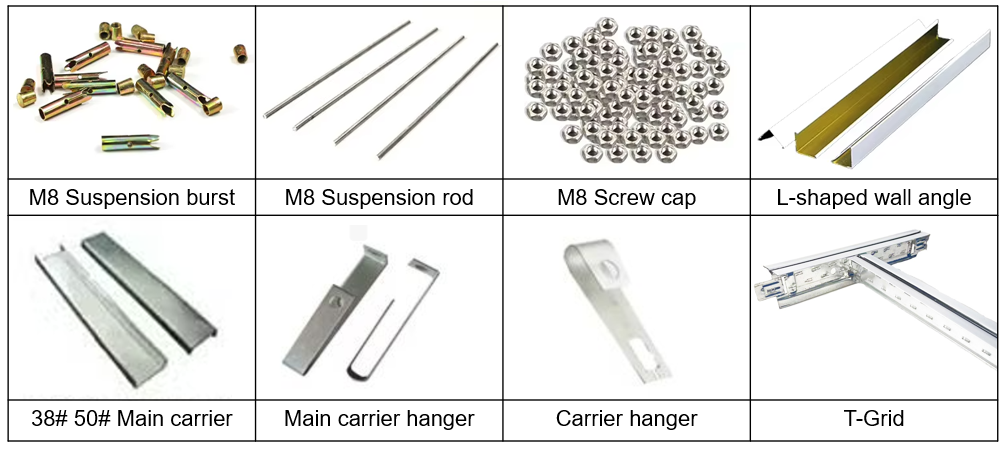

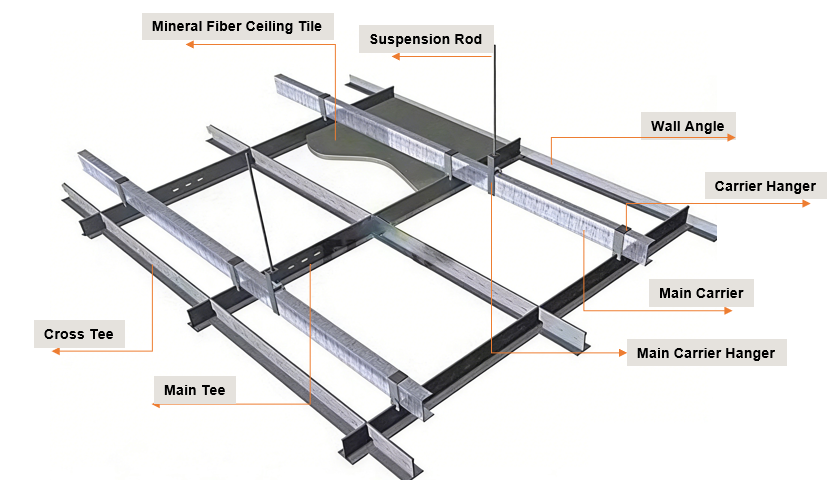

Installation system & Accessories

Mineral fiber drop ceiling tiles installed in a standard 15/16'' or 9/16'' ceiling grid system.

Hot dipped galvanized coating inhibits red rusting better than electrogalvanized.
System is engineered and designed to fit and provide high quality finish.
Main Tee easy profile for installation with Cross Tee.
Increased strength and stability for improved performance.
Easy to cut.
Rotary stitched for additional torsional strength and extra stability during installation.
Faster and easier insertion/installation of croos tees.
Tighter tee to tee connection.
Better load carrying capability.

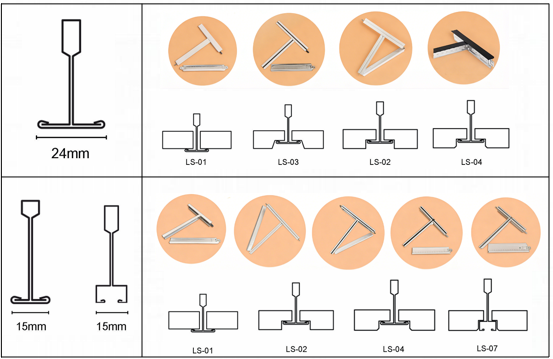

15/16''(24mm) & 9/16'' (15mm)

T-Grid Suspension System

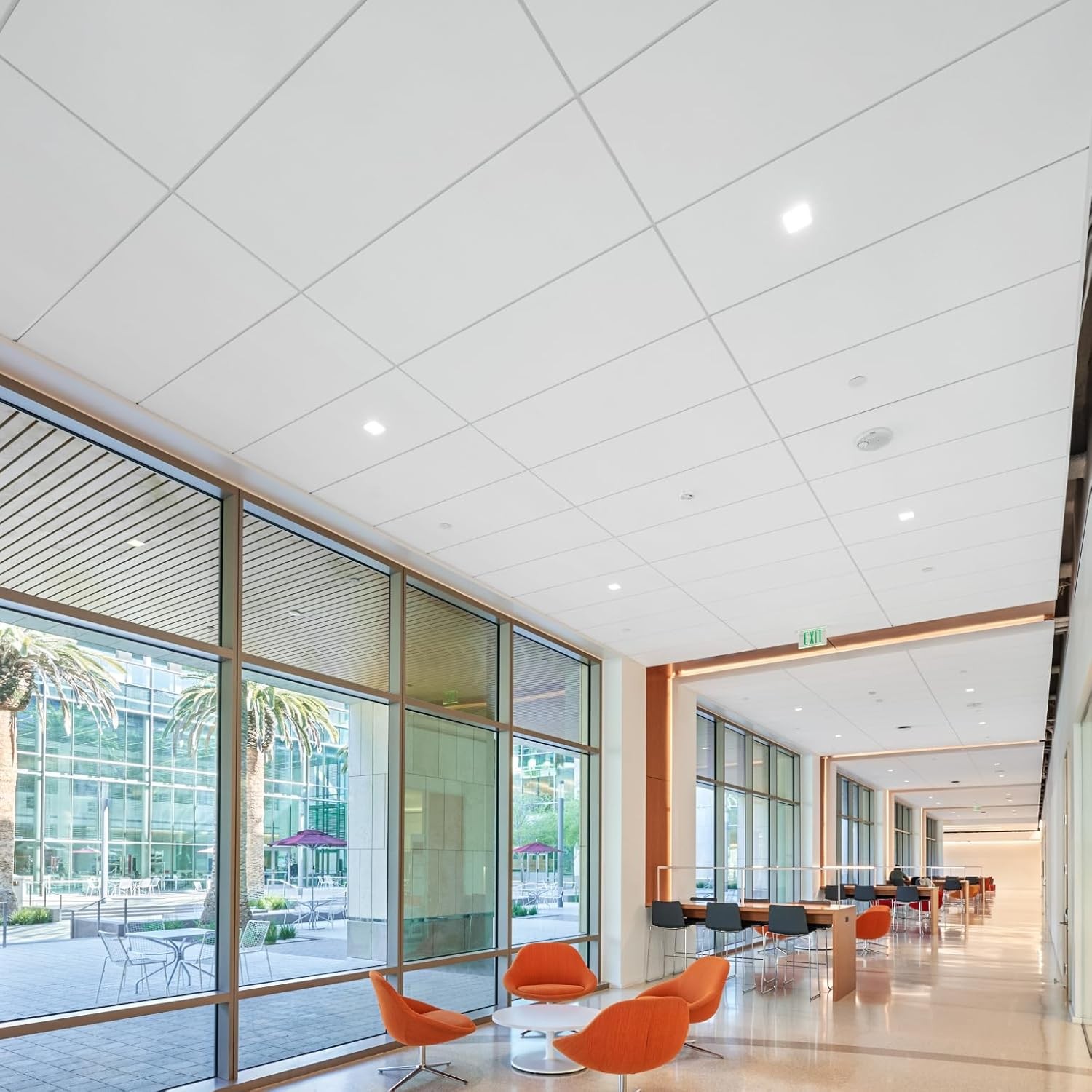

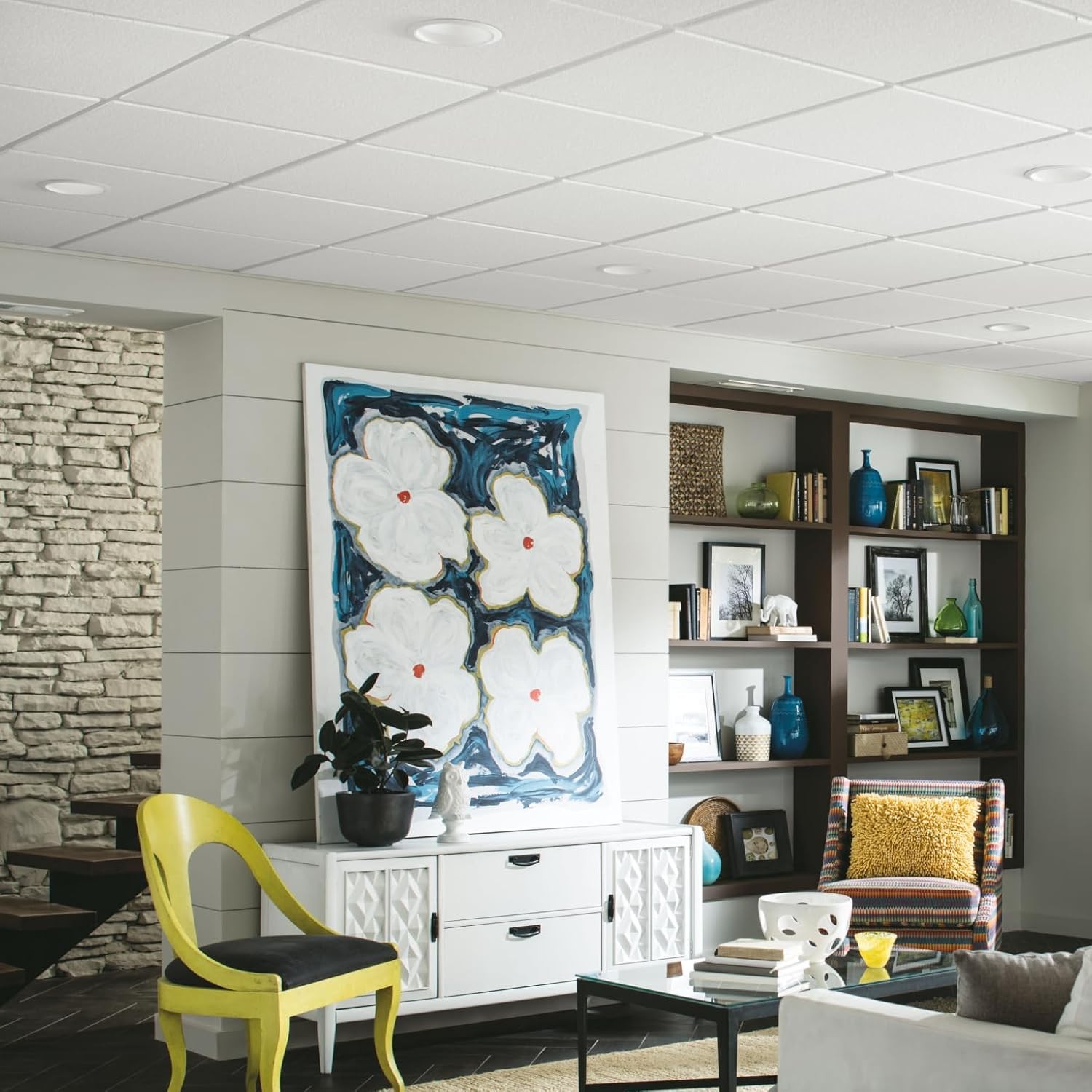

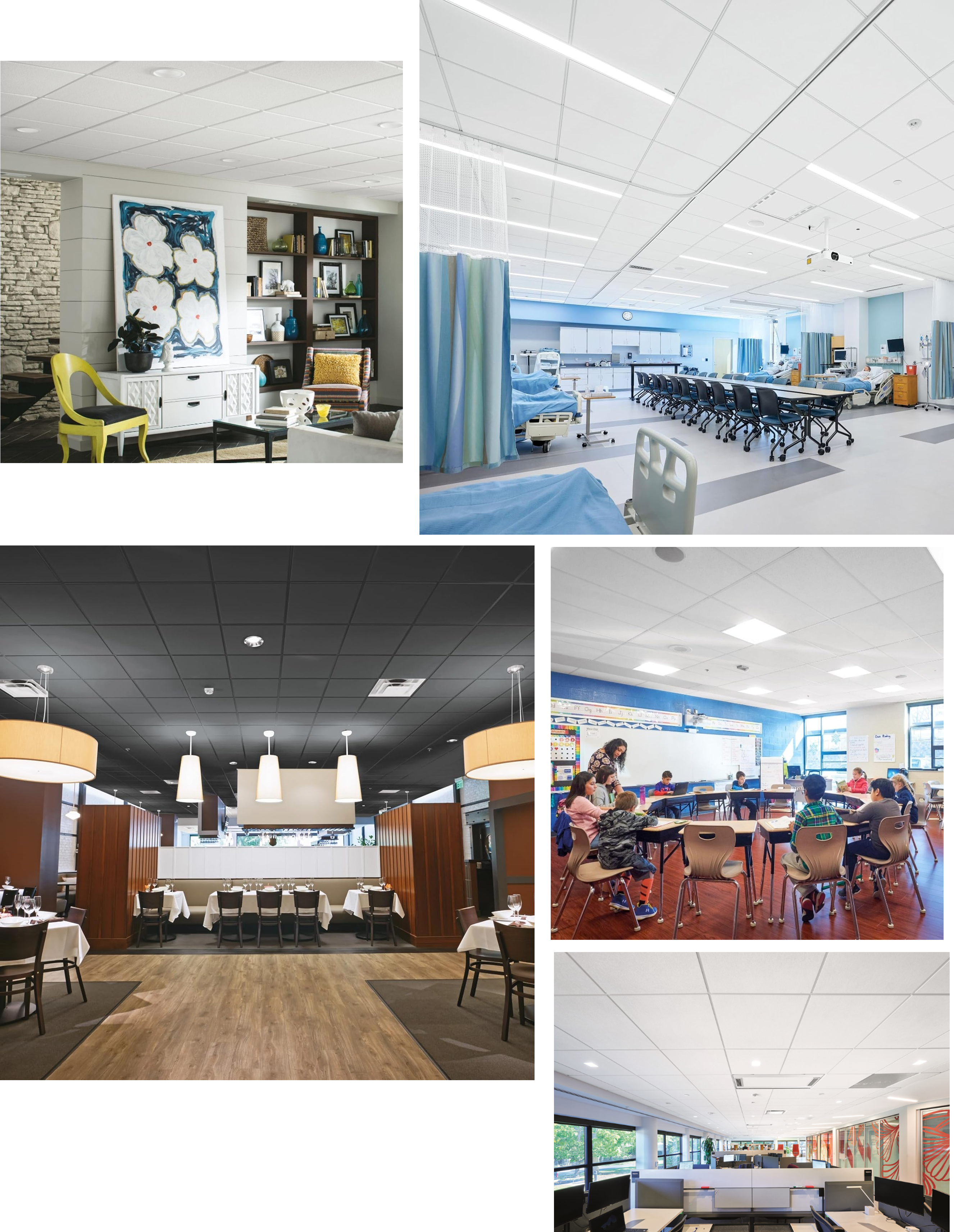

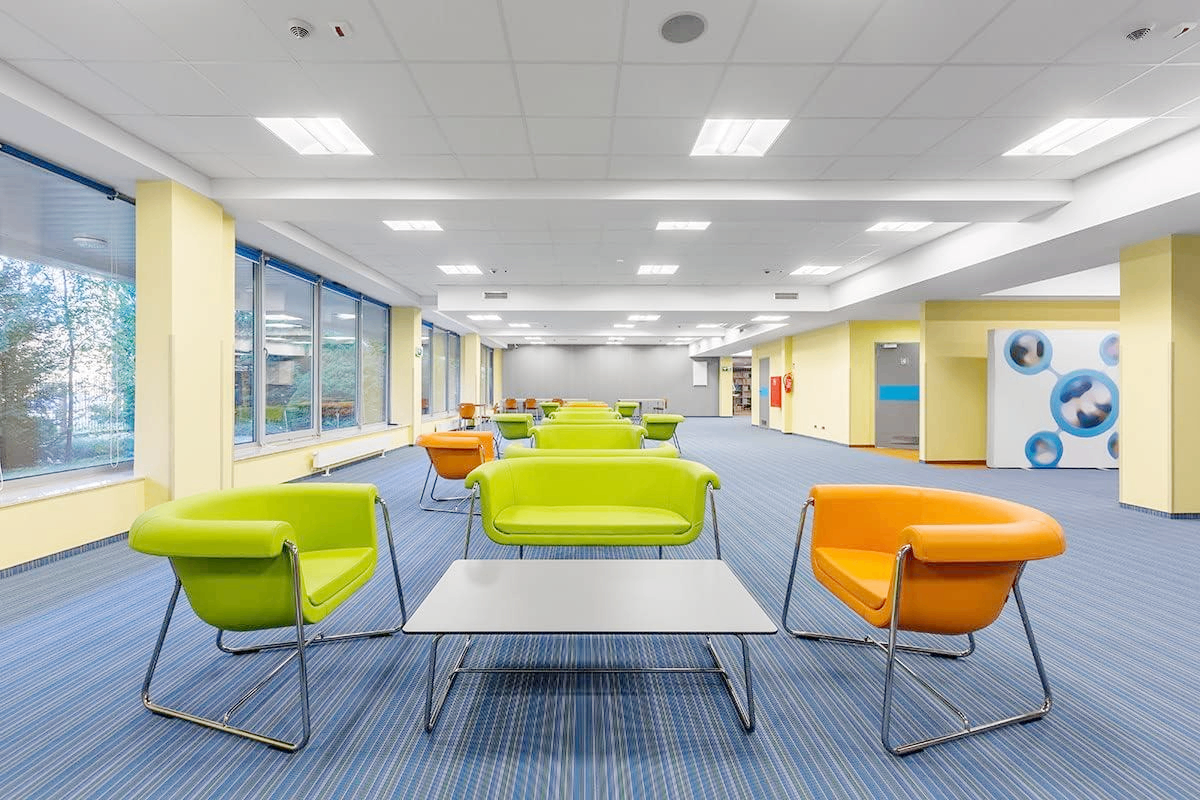

Application

PuloMax mineral fiber ceiling tiles are widely applied in various commercial and public spaces where excellent acoustics, fire resistance, moisture resistance and aesthetic appearance are required.

They are the ideal ceiling solution for:

Office buildings, conference rooms and open workspaces
Schools, universities, libraries and training centers
Hospitals, clinics, laboratories and healthcare facilities
Shopping malls, retail stores and commercial centers
Hotels, lobbies, restaurants and entertainment venues
Airports, railway stations, subway stations and transportation hubs
Government buildings, banks and public service facilities
Clean rooms, workshops and industrial functional areas

With reliable performance and flexible designs, our mineral fiber ceiling tiles perfectly match architectural requirements for comfort, safety, energy efficiency and long‑term durability.
